Latest manufacturing process saves 2kg per corner; monobloc titanium can withstand 125kg per millimetre

Bugatti is developing the world’s first 3D printed brake calipers for introduction onto its Chiron hypercar later this year – and it said the part is the first of several new significant production breakthroughs.

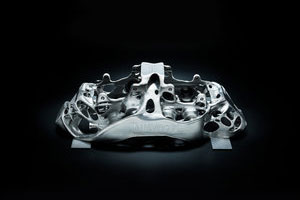

Each titanium caliper is made from a monobloc of titanium that is crafted using 400-watt lasers. Titanium powder is deposited in 2,213 layers to produce the part, which is heated to 700 degrees celcius during a 45-hour-long production process.

Bugatti claims the caliper - which is the longest car caliper in production at 41cm long - weighs 2.9kg, 2kg less than the aluminium caliper currently offered with the 1479bhp car. Despite the reduction in weight, it’s said to be tougher than the aluminium part, able to withstand 125kg of pressure per millimetre.

Chiron sets 0-400-0kmh record

The technology used to create the new caliper stems from the motorsport and aviation industries. Bugatti said the caliper is the first of several potential new parts it can now produce thanks to the introduction of this high-tech 3D printing system.

Frank Götzke, Bugatti’s head of new technologies, has also hinted the tech could be used in the wider Volkswagen Group. He said: “In 3D printing development, Bugatti is the leader in the group.

“Everyone can, and should, benefit from our projects. This is also part of Bugatti’s role as the Group laboratory for high-tech applications.”

The Chiron uses an quad-turbocharged 8.0-litre W16 engine. The £2.5 million car can hit 62mph in 2.5sec and has a top speed of 261mph.

More content:

Next Bugatti Chiron set to be electrified

Bugatti Chiron: the numbers behind the £2.5 million hypercar

Our Verdict

Bugatti Chiron

Bugatti originally brought us the Veyron and now has masterminded a 1487bhp, £2.5m masterpiece that's set to become the world's fastest production car

Join the debate

Comments
6

22 January 2018

How much lighter is a 'printed' Titanium caliper to a machined/laser cut Titanium caliper?   I don't think it's lighter than an Aluminium caliper because it's printed I think it's lighter because it's made of Titanium

typos1 - Just can’t respect opinion

22 January 2018

If you can convince someone to part with two million,a few thousand isn’t much of a matter, and, will the buyer care?, will they notice the difference?

Peter Cavellini.

22 January 2018

I still can't get my head around how 3D printed parts can be as strong or stronger than forged or cast components. Call me a luddite but it makes my head scramble a bit...

22 January 2018

The 'printing' part of this is slightly misleading and suggests lightweights materials but is a layman's term rather than something used in industry. Layers of material are built up in such a way that machining and other post-manufacture finishing procedures that can weaken a cast part or not required, hence retaining its integrity. Plus, very complex parts that cannot be made in a single piece can be constructed as a 'printed' piece.

It's correct that 3D printing is predominantly used for lightweight, non-structural parts that can be made cheaply. But the technology is developing quickly to now include high-strength parts when using certain meterials.


23 January 2018

The industry name for this is Additive Manufacturing, which is a bit more sensible than the more widespread 3D Printing name. The part is made from a powder which is essentially welded layer by layer, but on a miniscule scale. You can control the size of the powder and the heat from the laser, which allows you to finely tune the microstructure of the part (which in turn determines the material properties - much like cast parts aren't as strong as forged parts). This is why the parts can achieve near-forged or better properties, since the microstructure can be made consistent and as required.

On top of this, the swiss-cheese - like structure of these callipers will increase the surface area of the calliper significantly, increasing the cooling rate and stopping as much heat getting to the brake fluid. This will definitely improve the performance of the brakes, especially when you consider the braking energy when you're travelling at 260+mph.

The technology is being used to make functional components for jet engines - it's here, and it's only going to get better!

25 January 2018

What absolute twaddle - "able to withstand 125kg of pressure per millimetre".

125kg is a mass

mm is a length

pressure is a force/area i.e. N/mm2 or pounds per square inch

Nothin about the sentence makes any sense at all.

Ettore Bugatti would weep if he new the Wolfsperg crims now owned his brand.
